BFT SUB OPERATOR SINGLE KIT (various options)
- 230v
- Underground hydraulic operator
- Very intensive use.
- Ideal for residential and industrial settings.
- For swing gate leafs from 1.8m to 3.5m
- Swing gate weighing up to 800kg.

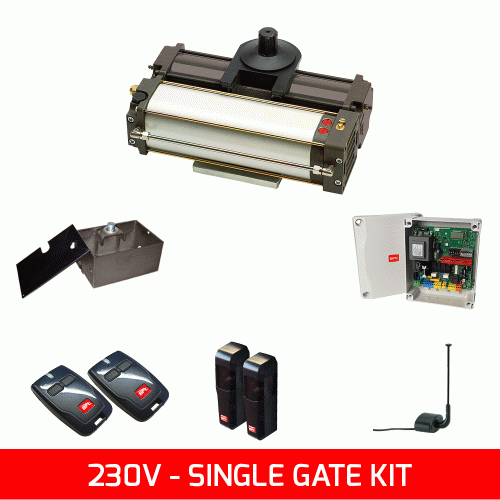

Included in the kit:
1x Sub operator
1x Rigel 6 control panel & receiver
2x Mitto radio transmitters
1x Pair of Compacta 180° photocells
1x Radio antenna
TECHNICAL SPECIFICATIONS: SUB OPERATOR (PLUS MODEL VARIATIONS)
| SUB | SUB R | SUB E | SUB ER | SUB EL | SUB G | SUBGR | SUB GE | SUB GER | |
| POWER SUPPLY | 230V | 230V | 230V | 230V | 230V | 230V | 230V | 230V | 230V |
| GATE LEAF LENGTH | 1.8M | 1.8M | 2.5M | 2.5M | 3.5M | 1.8M | 1.8M | 2.5M | 2.5M |
| MAX LEAF WEIGHT | 800KG | 800KG | 800KG | 800KG | 800KG | 800KG | 800KG | 800KG | 800KG |
| HYDRAULIC LOCKING | YES | YES | NO | NO | NO | YES | YES | NO | NO |
| SLOW DOWN | NO | YES | NO | YES | NO | NO | YES | NO | YES |
| SUB | SUB R | SUB E | SUB ER | SUB EL | SUB G | SUB GR | SUB GE | SUB GER | |
| OPENING ANGLE | 130° | 130° | 130° | 130° | 130° | 180° | 180° | 180° | 180° |
| CONTROL PANEL | RIGEL 6 | RIGEL 6 | RIGEL 6 | RIGEL 6 | RIGEL 6 | RIGEL 6 | RIGEL 6 | RIGEL 6 | RIGEL 6 |
| CYCLE TIME (THRU 90°) | 17 SECS | 10 SECS (+ SLOWDOWN) | 17 SECS | 10 SECS (+ SLOWDOWN) | 23 SECS | 17 SECS | 10 SECS (+SLOWDOWN) | 17 SECS | 10 SECS (+SLOWDOWN) |
| IMPACT REACTION | HYDRAULIC CLUTCH | HYDRAULIC CLUTCH | HYDRAULIC CLUTCH | HYDRAULIC CLUTCH | HYDRAULIC CLUTCH | HYDRAULIC CLUTCH | HYDRAULIC CLUTCH | HYDRAULIC CLUTCH | HYDRAULIC CLUTCH |
| PROTECTION RATING | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| TEMPERATURE RANGE | -10°C TO 60°C | -10°C TO 60°C | -10°C TO 60°C | -10°C TO 60°C | -10°C TO 60°C | -10°C TO 60°C | -10°C TO 60°C | -10°C TO 60°C | -10°C TO 60°C |
| FREQUENCY OF USE | VERY INTENSIVE | VERY INTENSIVE | VERY INTENSIVE | VERY INTENSIVE | VERY INTENSIVE | VERY INTENSIVE | VERY INTENSIVE | VERY INTENSIVE | VERY INTENSIVE |
BFT Sub Operator Single Kit
- Brand: BFT Automation
- Product Code: Sub Operator Single Kit
- Availability: In Stock
- £2,049.46
-
Starting From £1,458.26
- Ex Tax: £1,215.22
