The E5 is an extremely compact non-locking 24V electromechanical operator with articulated arm for pedestrian swing gates, suitable for residential and commercial areas. The compact dimensions allow the E5 BT A to be installed on small pillars and columns (minimum required width 8cm).

There are two models available, the A12 and A18. The A12 model is suitable leafs up to 1.2 metres and up to 80kg and the A18 model is suitable for 1.8 metres wide and up to 100kg.

The sliding arm option allows the operator to be installed in tight spaces when there are walls or obstacles near the operator. The limit switch operation is managed by the absolute encoder. Built-in safety features include the d-track torque management system, which determines the precise position and force needed to move the gate. The operator has an internal clutch and the new articulated and sliding arms have an anti-shearing system.

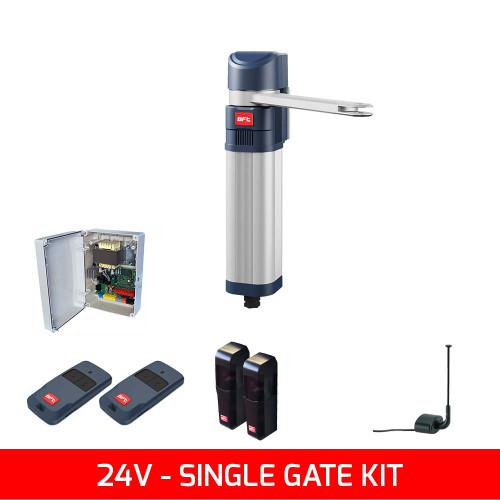

A12 Kit contents

• 1x E5 BT A operators (also available as a twin kit)
• 1x Thalia L control panel & receiver
• 2x Mitto radio transmitters
• 1x Pair Compacta photocells
• 1x Radio antenna

A18 Kit contents

• 1x E5 BT A operators (also available as a twin kit)
• 1x Thalia P control panel & receiver
• 2x Kleio radio transmitters
• 1x Pair Akta photocells and Akta covers
• 1x Radio antenna
