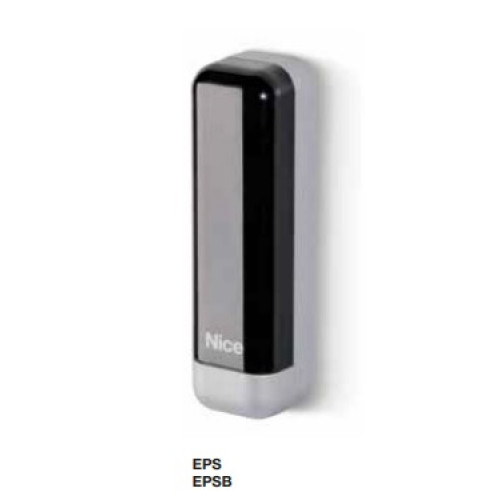

Era Photocell S Fixed, synchronized photocells Slim, also with Nice BlueBUS technology
Safe: D type device according to specification E-124_x005F_x005F which allows to pick-up obstacles on the optical axis between transmitter (TX) and receiver (RX). Using the fototest function it is possible to achieve class 2 safety fault according to specification E- 954-1. Antiglare circuit which eliminates possible sunlight interference.
Practical: 8° angle of reception.
Resistant and vandal-proof: ABS body resistant to weather conditions, available also in burglar-resistant version with metal shell.
Nice BlueBUS technology: available with the BlueBUS system, which allows an easy connection to the control unit of all devices with only two wires, by simply connecting them in parallel and selecting the jumpers for addressing according to the needed function. The system acquires automatically the devices connected to the BlueBus network. Automatic synchronization between multiple photocell pairs in order to avoid other possible interferences between the devices.

	Estimated Range (M)	Power Supply	Absorption (mA)	Protection Level (IP)	Operating Temperature (°C Min/Max)	Relay Range	Dimensions (mm)	Weight (g)
EPS	15	24 Vac/Vdc limits: 18-35 Vdc, 15-28 Vac	25 RX, 30 TX	44	-20 ÷ +50	Max 500 mA and 48 V	30x27x106h	120
