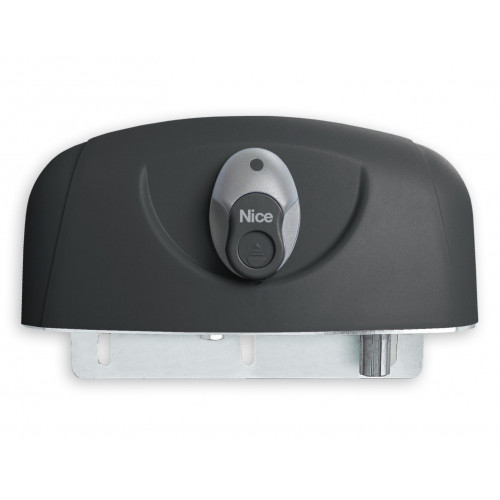

Hyppo, Motor for folding 2-leaf doors, with telescopic arm and limit switch on opening and closing.
Electromechanical gear motor irreversible with telescopic arm, also in 24 Vdc ver- sion, with magnetic encoder.
Single model for right and left leaves.
Double built-in limit switch: in both opening and clos- ing, pre-wired: fewer connections and fast installation (for HY7100 only).
Solid metal mechanics.
Sturdy, galvanised, telescopic arm.
Recommended control units:
for HY7005 Moonclever MC800;
for HY7024 Moonclever MC824H.
24 Vdc version with magnetic encoder.
Perfect for intensive use, compatible with the control unit Moonclever MC824H:
simple programming, by means of a single key;
automatic memorization of limit switches on opening and closing with self-learning function;
automatic fault diagnostics;
programming of pause time;
pedestrian pass door;
deceleration on opening and closing;
obstacle detection with dual technology;
operation in event of power failure by means of op- tional rechargeable batteries (PS324);
provision for connecting latest generation resistive sensitive edges at 8.2 kOhm.
ELECTRICAL DATA
| POWER SUPPLY (Vac 50Hz)* | POWER SUPPLY (Vdc) | ABSORPTION (A) | POWER (W) |
| - | 24 | 5 | 120 |
*Radio receiver incompatible with Opera system.
PERFORMANCE DATA
| SPEED (RPM) | TORQUE (Nm) | WORK CYCLE (CYCLES/ HOUR) |
| 2 | 250 | 80 |
DIMENSIONAL AND GENERAL DATA
| PROTECTION LEVEL (IP) | WORKING TEMP (C MIN/MAX) | DIMENSIONS (MM) | WEIGHT (KG) |
| 20 | -20 ÷ +50 | 350X165X242H | 13 |
Nice Hyppo Motor - Folding 2 Leaf Door
- Brand: Nice
- Product Code: HY7124
- Availability: In Stock
- £1,112.05
-
£639.16
- Ex Tax: £532.63
Tags: Nice, hyppo, HY7124, motor, above ground, folding leaf, 1.5m, 200kg, telescopic arm, 24v, dc gate automation, gate automation motor, folding leaf motor, hyppo nice motor,
