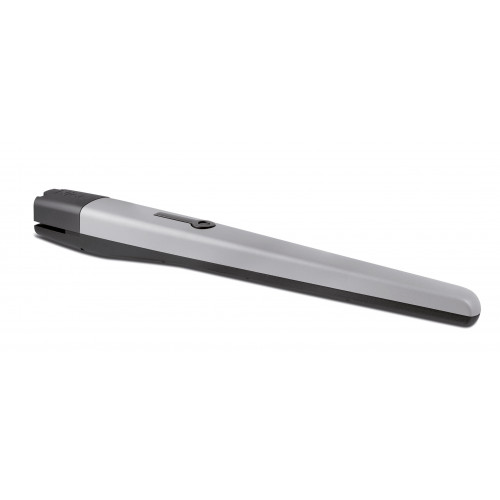

Toona5
For swing gates with leaves up to 5 m

Ideal for residential and industrial applications.

Electromechanical gear motor, surface mounted. Also available in 24 Vdc version, with magnetic encoder.

Reliability and durability over time: thanks to the housing, made up of two tough aluminium shells with polyester paint finish; more resistant to atmospheric agents.

Internal moving parts completely in steel, light alloys and telenopolymers.

TO5024l ideal for intensive work load, thanks to the torque of 2200Nm, can work continuous duty on large sized gates.

Silent: patented layout of internal parts and lead nut in bronze.

Generously sized and practical connection compartment: rapid and easy access from above to internal parts located in the upper section of the motor.

Simple installation and maintenance: with built-in capacitor.

Recommended control units: MC800, Moonclever MC824H for TO5024 and TO5024I.

24 Vdc version with magnetic encoder.

Perfect for intensive use, compatible with the control unit Moon- clever MC824H:

• simple programming, by means of a single key;

• automatic memorization of limit switches on opening and closing with self-learning function;

• automatic fault diagnostics; torque of 2200 Nm, can work on continuous duty on

• programming of pause time; l

• pedestrian pass door;

• deceleration on opening and closing;

• obstacle detection with dual technology;

• operation in event of power failure by means of optional rechargeable batteries (PS324);
• Provision for connection of latest generation resistive sensitive edges.

TO5605

ELECTRICAL DATA

PERFORMANCE DATA

DIMENSIONAL AND GENERAL DATA

*60Hz VERSION AVAILABLE ON REQUEST

***THE REDUCTION IN NUMBER OF MANOEUVRES WITH RESPECT TO THE VERSION TO5024 DEPENDS SOLELY ON THE LOWER MANOEUVRE SPEED
