FROG - X 24V DOUBLE KIT.
UNDERGROUND SWING GATE AUTOMATION WITH ENCODER FOR PAIR OF GATES, UP TO 4M PER LEAF.
- FAST AND SILENT - 24V BRUSHLESS MOTOR WITH SPEED UP TO 10 SECONDS FOR 90° OPENING.
- POWERFUL AND RELIABLE - FOR GATE LEAVES UP TO 4 METERS AND 400 KG, WITH MCBF 250,000 CYCLES, IDEAL FOR BOTH RESIDENTIAL AND INDUSTRIAL SETTINGS.
- STRESS-RESTISTANT - ALL-METAL FRAME AND GEARS MADE OF HARDENED AND TEMPERED CARBON STEEL, AND HIGH QUALITY STEEL GATE LEAF SUPPORT PIN.
- WEATHER RESISTANT - ALUMINIUM MOTOR CASING WITH IP67 PROTECTION RATING.
- ADVANCED ELECTRONICS - CONTROL PANEL WITH SMART CONFIGURATION THROUGH CAME KEY AND ADVANCED FUNCTIONS.
- COMPATIBLE WITH FOUNDATION BOXES OF PREVIOUS MODELS - IT CAN ALSO BE INSTALLED IN CONJUNCTION WITH EXISTING FROG FOUNDATION BOXES.

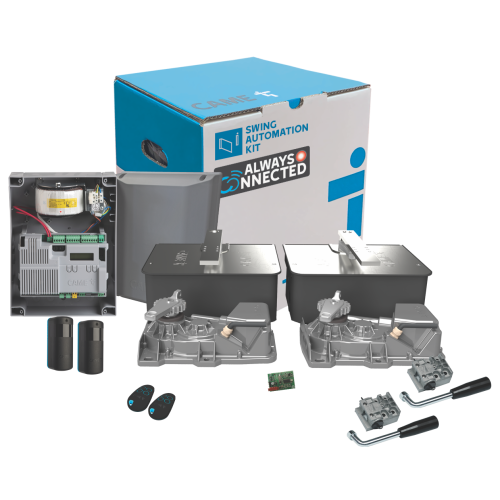

KIT CONTAINS:
- 1 PAIR OF FROG - X GEARMOTORS
- 1 PAIR OF FOUNDATION BOXES
- MULTIFUNCTION CONTROL PANEL - ZLB24SA
- PLUG-IN RADIO FREQUENCY CARD
- TUNED ANTENNA
- 1 PAIR DXR BUS PHOTOCELLS
- 2 LEAVER RELEASE KEY
- 433MHZ 4-BUTTON ROLLING CODE TRANSMITTERS
- GSM CONNECT MODULE
801MI-0020 FROG-X OPERATOR WITH 24V MOTOR SPECS
| MAX. LEAF WIDTH (M) | 4 | 3.5 | 3 | 2.5 | 2 |
| MAX LEAF WEIGHT (KG) | 400 | 500 | 600 | 700 | 800 |
| PROTECTION RATING (IP) | POWER SUPPLY (V-50/60HZ) | MOTOR POWER SUPPLY (V DC) | MAX CURRENT DRAW (MA) | POWER (W) | TORQUE (NM) | OPENING TIME AT 90° (S) | CYCLES/HOUR | OPERATING TEMPERATURE (°C) |
| 67 | 24 | 24 | 15 | 125 | 300 | 10 TO 18 | CONTINUOUS SERVICE | -20 TO +55 |
Came FROG-X Double Kit
- Brand: Came
- Product Code: 8K01MI-0636
- Availability: In Stock
- £2,338.80
-
£1,730.71
- Ex Tax: £1,442.26
Tags: FROG-X, DOUBLE KIT, 24V, 4 METERS, 400KG, RESIDENTIAL, INDUSTRIAL, CAME, CAME KEY, ADVANCED FUNCTIONS, CAME KEY, came frog x gate system, swing gate system, electric gate double kit, swing gate double kit, came double kit, twin gate kit, under ground gate kit, underground came kit, underground twin kit, underground came kit, frog series double kit, twin kit swing gates,
