The Eli BT is available in a range of 24V
electromechanical underground operators which are suitable for intensive usage.
They are designed for private residences and small apartment blocks. The motors
are suitable for gate leaf lengths between 3.5m and 4m, weighing up to a
maximum of 500kg The Eli models are equipped with physical stops in both
directions and as standard can operate gates up to 120°.
There are two models available, the A35V fast
operator and A40. The A35 model is suitable leaf’s up to 3.5 metres and up to
200kg and the A40 model is suitable for 4 metres wide and up to 500kg.
The Eli is available in standard or fast versions
and can also provide 180° operation by means of a chain kit The low voltage
operators are equipped with built-in obstacle detection through the exclusive
D-Track torque management system.
|
|
ELI BT A35V |
ELI BT A40 |
|
Power supply |
24V |
24V |
|
Gate leaf length |
3.5m |
4m |
|
Max leaf weight |
200kg |
500kg |
|
Control panel |
THALIA |
THALIA |
|
Cycle time |
11 secs (with slowdown) |
14 secs (with slowdown) |
|
Impact reaction |
Electronic clutch |
Electronic clutch |
|
Protection rating |
IP67 |
IP67 |
|
Temperature range |
-20°C to 55°C |
-20°C to 55°C |

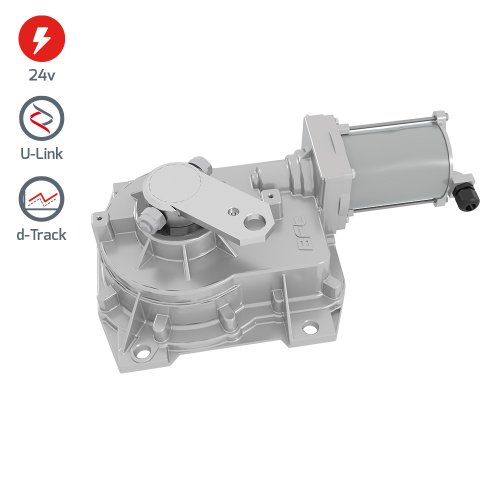

BFT Eli BT A40
- Brand: BFT Automation
- Product Code: Eli BT A40
- Availability: In Stock
- £685.69
-
£487.89
- Ex Tax: £406.58
