Concealed solution for applying in private homes or apartment buildings
• The invisible solution to power your gate
• Protection rating against weathering agents IP67.
• Foundation box in steel with anticorrosive treatment, or in AISI 304 stainless steel.
• Automatic re-hooking of the release system after the gate manual maneuver.
• Integrated, adjustable mechanical limit switches.
•Opening up to 180° (with FL-180 accessory).
• Set up for operation in case of power outage in the 24 V DC versions.
• Developed with CONNECT technology for remote digital control via gateway or locally via CAME KEY.
| MODELS | FROG-AE | FROG-A | FROG-AV | FROG-A24E |
|---|---|---|---|---|
| Protection rating (IP) | 67 | 67 | 67 | 67 |
| Power supply (V - 50/60 Hz) | 230 AC | 230 AC | 230 AC | - |
| Power supply to motor (V) | 230 AC | 230 AC | 230 AC | 24 DC |
| Absorption (A) | 1,9 | 1,9 | 2,5 | 15 Max. |
| Power (W) | 460 | 460 | 300 | 180 |
| Maneuvering time at 90° (s) | 18 | 18 | 9 | ADJUSTABLE |
| Duty/cycle (%) | 30 | 30 | 30 | HEAVY-DUTY SERVICE |
| Cycles/Hour | 11 MAX | 11 MAX | - | - |
| Operating temperature (°C) | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 |
| Motor’s heat protection (°C) | 150 | 150 | 150 | - |

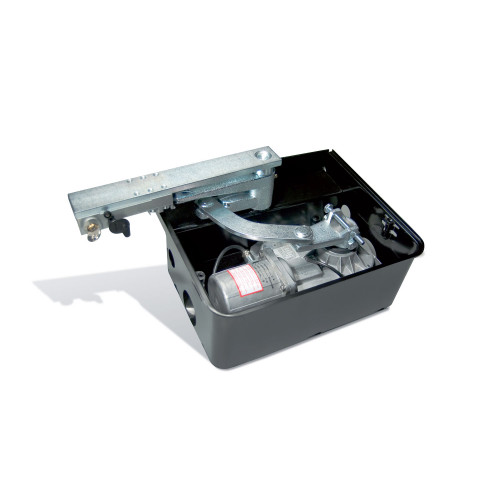

Came FROG-A24E 24V Self-Locking Operator with Encoder
- Brand: Came
- Product Code: FROG-A24E
- Availability: In Stock
- £534.00
-
£395.16
- Ex Tax: £329.30
Tags: CAME, 24v, Release Systems, Self Locking, Underground Motors, Swing Gate Motors, Operator, Encoder, FROG-A24E, swing gate motor, self locking operators, 24v swing gate motor, underground motor, came underground motor, cane underground installation, swing gate encoder, frog series operator,
