HYKE DOUBEL KIT
UP TO 3.5M, INCLUDING:

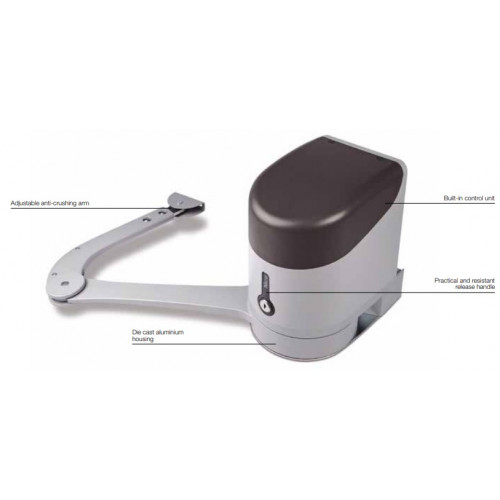

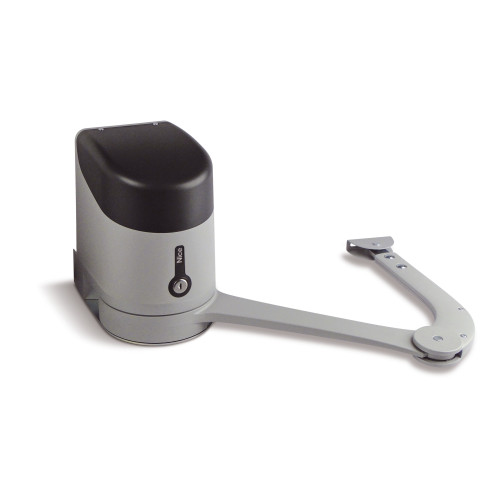

HK7024 + HK7224 - 2 ELECTROMECHANICAL GEAR MOTORS, SURFACE MOUNTED: HK7024 (WITH CONTROL UNIT AND OXIBD BIDIRECTIONAL RADIO RECEIVER WITH CONNECTOR INCLUDED), HK7224 (WITHOUT CONTROL UNIT).
ON3EBD - 2 TRANSMITTERS 433.92MHZ, 3 CHANNELS, BIDIRECTIONAL.
EPMB - ONE COUPLE OF OUTDOOR PHOTOCELLS DESIGNED FOR CONNECTION VIA BLUEBUS.
HK7024
ELECTRICAL DATA
| POWER SUPPLY (Vac 50/60Hz) | POWER SUPPLY (Vdc) | ABSORPTION (A) | POWER (W) |
| 230 | - | 1,5 | 300 |
PERFORMANCE DATA
| SPEED (RPM) | TORQUE (Nm) | WORK CYCLE (CYCLES/ HOUR) |
| 1,5 | 500 | 40 |
DIMENSIONAL AND GENERAL DATA
| PROTECTION LEVEL (IP) | WORKING TEMP (C MIN/MAX) | DIMENSIONS (MM) | WEIGHT (G) |
| 54 | -20 ÷ +50 | 290X210X320H | 10,5 |
HK7224
ELECTRICAL DATA
| POWER SUPPLY (Vac 50/60Hz) | POWER SUPPLY (Vdc) | ABSORPTION (A) | POWER (W) |
| - | 24 | 6 | 140 |
PERFORMANCE DATA
| SPEED (RPM) | TORQUE (Nm) | WORK CYCLE (CYCLES/ HOUR) |
| 1,5 | 500 | 40 |
DIMENSIONAL AND GENERAL DATA
| PROTECTION LEVEL (IP) | WORKING TEMP (C MIN/MAX) | DIMENSIONS (MM) | WEIGHT (G) |
| 54 | -20 ÷ +50 | 290X210X320H | 9,5 |
Nice HYKE DOUBLE KIT
- Brand: Nice
- Product Code: HYKE-DKIT
- Availability: In Stock
- £2,782.87
-
£1,599.48
- Ex Tax: £1,332.90
Tags: double swing gate kit, swing gate kit, articulated arm gate kit, nice, nice kit, hyke kit, swing gate hyke, swing gate motor hyke, HK7024, 3.5 meters, full kit, full swing gate kit,
