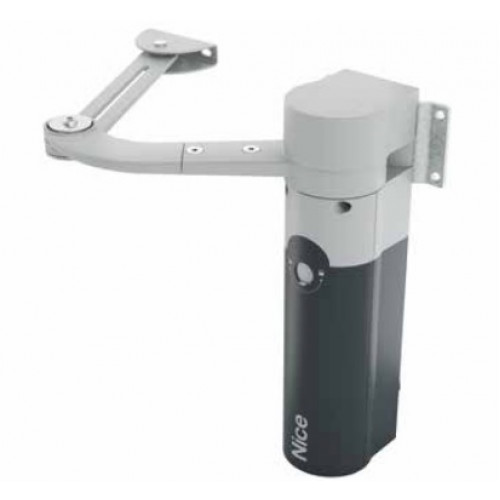

- Walkykit 1024 BD For swing gates with leaves up to 1.8 m.
- This kit includes:
- 1x WL 1024C Swing gate motor (With OXIBD Reciever)
- 2x ON3EBD Transmitters
- 1x TS Warning sign
- Especially suited to gates in wood or PVC. Irreversible electromechanical gear motor at 24 Vdc, with articulated arm.
- Ultra compact: ideal for pedestrian gates, recommended for small posts (width 8 cm).
- Safe: thanks to the irreversible motor and anti-shear arm with built-in mechanical stop on closure (with installation of entire arm).
- Practical: the articulated arm enables installation in specific conditions, such as in the presence of small walls or obstacles adjacent to the post.
- Quick: no waiting in front of the gate, just 7 seconds to open or close (in optimal installation conditions, with reduced arm and 90° opening).
- Convenient: incorporable flashing Led indicator, with courtesy light function (WL3, optional); rapid motor release for manual movement of the gate.
- Built-in control unit: • simple programming; • automatic memorization of limit switches on opening and closing with self-learning function; • automatic fault diagnostics; • programming of pause time; • pedestrian pass door; • deceleration on opening and closing; • provision for connection of latest generation resistive sensitive edges. No black out: with the optional batteries (PS424) housed inside the gear motor.
WL1024C
ELECTRICAL DATA
| POWER SUPPLY (Vac 50/60Hz) | ABSORPTION (A) | POWER (W) |
| 230 | 0,8 | 120 |
PERFORMANCE DATA
| SPEED (rpm) | FORCE (Nm) | WORK CYCLE (CYCLES/HOUR) |
| 1,5 - 2,2 | 120 | 50 |
DIMENSIONAL AND GENERAL DATA
| PROTECTION LEVEL (IP) | WORKING TEMP. (°C MIN/MAX) | DIMENSIONS (MM) | WEIGHT (KG) |
| 44 | -20÷+50 | 90x125x385h | 4,8 |
Nice Walkykit 1024 Single Kit
- Brand: Nice
- Product Code: WALKY1024BDKCE
- Availability: In Stock
- £1,012.74
-
£582.08
- Ex Tax: £485.07
