Solution for sliding gates at private homes
• Encoder-based movement control.
• Set up for installation of magnetic limit switches.
• Control board with terminal blocks, display and storage for up to 250 users.
• The safety inputs can be configured to directly control the 8k2Ω resistive sensitive-safety edges.
• Self-diagnosing safety devices.
• Developed with CONNECT technology for remote digital control via gateway or locally via CAME KEY.
| MODELS | 801MS-0020 | 801MS-0030 | 801MS-0060 |
|---|---|---|---|
| Protection rating (IP) | 44 | 44 | 44 |
| Power supply (V - 50/60 Hz) | 230 AC | 230 AC | 120 AC |
| Power supply to motor (V) | 230 AC | 230 AC | 120 AC |
| Absorption (A) | 2,7 | 2,5 | 4,5 |
| Power (W) | 560 | 520 | 530 |
| Manouvering speed (m/min) | 10,5 | 10,5 | 10,5 |
| Duty/cycle (%) | 30 | 30 | 30 |
| Cycles/Hour | 17 | 17 | 17 |
| Thrust (N) | 600 | 800 | 800 |
| Operating temperature (°C) | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 |
| Motor’s heat protection (°C) | 150 | 150 | 150 |

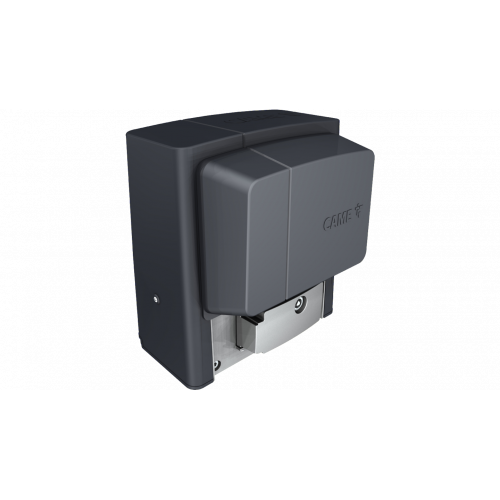

Came BX708AGS Sliding Gate Motor 230V up to 800kg
- Brand: Came
- Product Code: 801MS-0030
- Availability: In Stock
- £692.40
-
£512.38
- Ex Tax: £426.98
