- Designed for applications with C Max. up to 200 mm.
- Sturdy and durable with die-cast aluminium supporting structure.
- Reducer with bevel gear for greater fluidity of movement.
- Release system, with the possibility of remote control.
- Developed with CONNECT technology for remote digital control via gateway or locally via CAME KEY.
| MODELS | 801MP-0050 | 801MP-0060 | 801MP-0090 | 801MP-0100 | 801MP-0070 | 801MP-0080 | 801MP-0110 |
|---|---|---|---|---|---|---|---|
| Protection rating (IP) | 54 | 54 | 54 | 54 | 54 | 54 | 54 |
| Power supply to motor (V) | 230 AC | 230 AC | 230 AC | 230 AC | 24 DC | 24 DC | 24 DC |
| Absorption (A) | 1 | 1 | 1 | 1 | 8 MAX | 8 MAX | 8 MAX |
| Power (W) | 250 | 250 | 250 | 250 | 80 | 80 | 80 |
| Maneuvering time at 90° (s) | 15 | 20 | 15 | 20 | 15 ÷ 30 | 15 ÷ 30 | 15 ÷ 30 |
| Cycles/Hour | 20 | 20 | 20 | 20 | CONTINUOUS SERVICE | CONTINUOUS SERVICE | CONTINUOUS SERVICE |
| Thrust (N) | 400 ÷ 3000 | 400 ÷ 3000 | 400 ÷ 3000 | 400 ÷ 3000 | 400 ÷ 3000 | 400 ÷ 3000 | 400 ÷ 3000 |
| Operating temperature (°C) | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 |
| Motor’s heat protection (°C) | 150 | 150 | 150 | 150 | - | - | - |

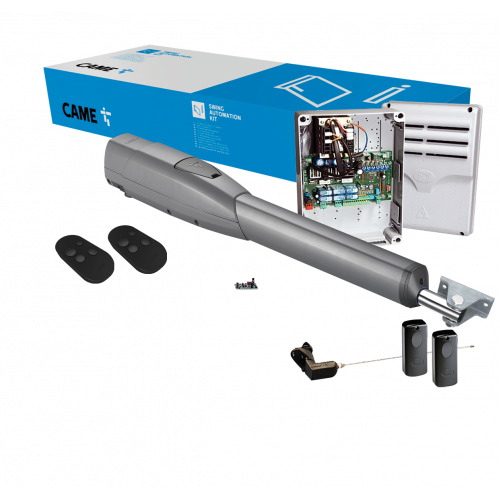

Came ATS Single Swing gate kit 230v 5m-400kg
- Brand: Came
- Product Code: ATS-S5
- Availability: In Stock
- £837.60
-
£619.82
- Ex Tax: £516.52
