Control units for motors with mechanical and electronic limit switch

Control unit for 230 Vac, 2.2 kW single phase motor, or 400 Vac, 2.2 kW three phase motor.

Both automatic and deadman operation.

uitable for all types of motors, single phase without inte- grated inverter and three-phase, with 2.2 kW maximum power.

Easy programming and 2 diagnostics LEDs. High performance: with possibility of adding a dedi-

cated module for optional potential free outputs.

Compatible with all types of sensitive edges, including wireless.

Easy to programme: thanks to the O-View program- mer with multifunction display for connection through the IBT4N interface (both optional).

Safe: protected by a plastic shell, to avoid any risk of electrical shock.

Radio receiver: dedicated slot for inserting Nice plug- in receivers.

Intelligent: the service warning for maintenance can be programmed according to the number of manoeuvres required.

ELECTRICAL DATA

POWER SUPPLY (Vac 50/60Hz)*	MAX MOTOR POWER (kW)	LOGIC UNIT POWER SUPPLY (Vdc)	POWER IN STANDBY	PRE LIMIT INPUT	EXTERNAL CONTROL INPUTS	SENSITIVE EDGES	EXTRA OUTPUT	DC OUTPUT	STOP INPUT
1~230 / 3 ~ 400	2,2	24	< 5 VA	PROGRAMABLE	WIRED INPUTS, ALL PROGRAMMABLE	OPTICAL, 8.2 K RESISTIVE AND 8.2 K PNEUMATIC	2 FREE PROGRAMMABLE AND POTENTIAL FREE CONTACTS (BY MEANS ON NDA040 MODULE)	24 Vdc 1°	NORMALLY CLOSED CONTACTS

DIMENSIONAL AND GENERAL DATA

PROTECTION LEVEL (IP)	WORKING TEMP. (°C MIN/MAX)	DIMENSIONS (MM)	WEIGHT (KG)
55	-20 ÷ +50	210X125X310H	3

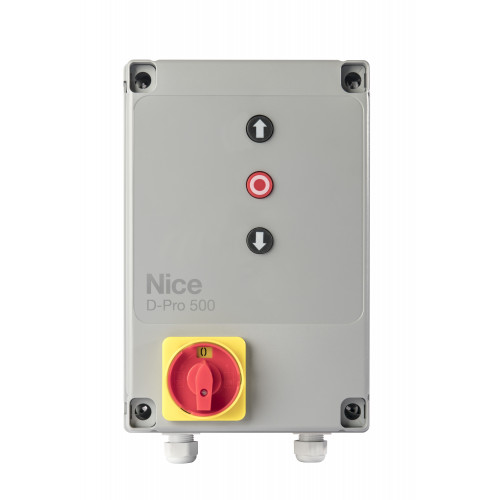

Nice D-Pro 500 Control Unit

Qty
