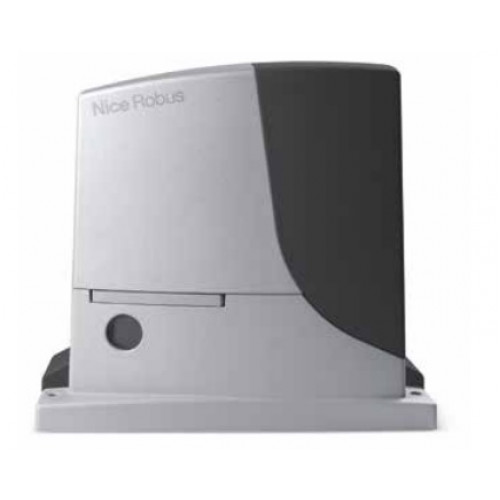

Robus, Motor for sliding gates up to 600 kg with control unit and inductive limit switch.
User-friendly: thanks to the BlueBUS system, allowing the control unit to be connected to up to 7 pairs of photocells and control, security and signalling devices with just two wires.
Practical: control unit and optional PS124 buffer batteries can be connected by means of practical guided connector.
Advanced: RB400, RB600 and RB1000 are equipped with a temperature sensor: adapt the motor power to the climatic conditions and at the same time thermal cut- out. A master/slave selection automatically synchronises two motors. This means it is possible to automate 2-leaf sliding gates set opposite each other.
Intelligent: thanks to the obstacle detection system and automatic programming of the working times. Self-diagnosis by means of a flashing light. 8 programming levels.
Safe: acceleration and deceleration can be adjusted at the beginning and at the end of each opening and closing manoeuvre.
Sturdy: base and release in pressure die cast with easy to open handle.
Silent: gear motor on bearings.
ELECTRICAL DATA
| POWER SUPLLY (Vac 50/60 Hz) | Absorption (A) | POWER (W) |
| 230 | 2,5 | 515 |
PERFORMANCE DATA
| SPEED (M/S) | FORCE (N) | WORK CYCLE (CYCLES/ HOUR) |
| 0,31 | 600 | 40 |
DIMENSIONAL AND GENERAL DATA
| PROTECTION LEVEL (IP) | WORKING TEMP (°C MIN/MAX) | DIMENSIONS (MM) | WEIGHT (KG) |
| 44 | -20 ÷ +50 | 330X210X303h | 11 |
Nice Robus RB600P
- Brand: Nice
- Product Code: RB600P
- Availability: In Stock
- £1,070.90
-
£615.51
- Ex Tax: £512.93
Tags: Robus, Nice, RB600P, Sliding Gates, Sliding, Gates Automation, 600kg, 24v, dc,
