Solution for applying in private homes

• Supporting structure in die-cast aluminium.

• Adjustable opening/closing microswitches.

• Built-in emergency release lever.

MODELS	KR300D	KR300S	KR302D	KR302S	KR310D	KR310S	KR312D	KR312S	KR510D	KR510S	KR301D	KR301S
Protection rating (IP)	54	54	54	54	54	54	54	54	54	54	54	54
Power supply (V - 50/60 Hz)	230 AC	230 AC	230 AC	230 AC	230 AC	230 AC	230 AC	230 AC	230 AC	230 AC	120 AC	120 AC
Power supply to motor (V)	230 AC	230 AC	230 AC	230 AC	230 AC	230 AC	230 AC	230 AC	230 AC	230 AC	120 AC	120 AC
Absorption (A)	1,1	1,1	1,35	1,35	1,1	1,1	1,35	1,35	1,1	1,1	2,6	2,6
Power (W)	240	240	300	300	240	240	300	300	240	240	300	300
Maneuvering time at 90° (s)	22	22	15	15	22	22	15	15	34	34	19	19
Cycles/Hour	16 MAX	16 MAX	16 MAX	16 MAX	16 MAX	16 MAX	16 MAX	16 MAX	10 MAX	10 MAX	12	12
Thrust (N)	400 ÷ 3000	400 ÷ 3000	400 ÷ 3000	400 ÷ 3000	400 ÷ 3000	400 ÷ 3000	400 ÷ 3000	400 ÷ 3000	400 ÷ 3000	400 ÷ 3000	400 ÷ 3000	400 ÷ 3000
Operating temperature (°C)	-20 ÷ +55	-20 ÷ +55	-20 ÷ +55	-20 ÷ +55	-20 ÷ +55	-20 ÷ +55	-20 ÷ +55	-20 ÷ +55	-20 ÷ +55	-20 ÷ +55	-20 ÷ +55	-20 ÷ +55
Motor’s heat protection (°C)	150	150	150	150	150	150	150	150	150	150	150	150

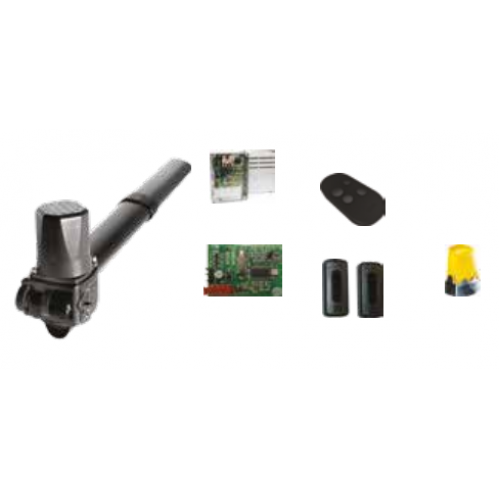

Came Krono 230v Kit for a single gate - 5m - Right Handed

Qty

Solution for applying in private homes • Supporting structure in die-cast aluminium. • Adjustable..

£325.01 £439.20 Ex Tax: £270.84

Solution for applying in private homes• Supporting structure in die-cast aluminium.• Adjustable open..

£804.53 £1,087.20 Ex Tax: £670.44

Solution for applying in private homes• Supporting structure in die-cast aluminium.• Adjustable open..

£821.40 £1,110.00 Ex Tax: £684.50

Solution for applying in private homes• Supporting structure in die-cast aluminium.• Adjustable open..

£1,044.29 £1,411.20 Ex Tax: £870.24

Solution for applying in private homes• Supporting structure in die-cast aluminium.• Adjustable open..

£685.54 £926.40 Ex Tax: £571.28
