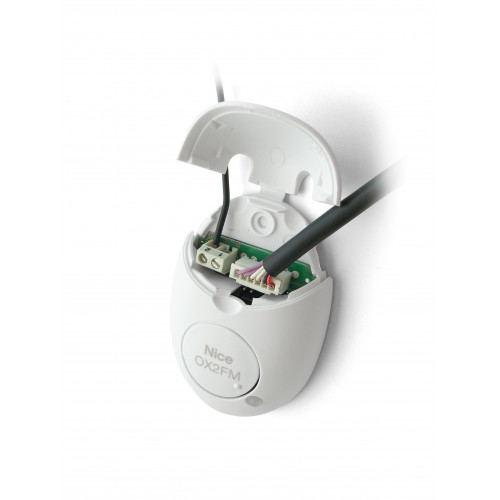

• Nice Pre-wired receiver 868.42MHz, 2 Channels, with built-in Transmitter

Pre-wired receiver 868.42MHz, 2 Channels, with built-in Transmitter

The complete line of receivers with Opera system functions, suitable for all installation requirements:


  • with connector, compatible with Nice control units with SM type connector and third-party control units thanks to the OX2UBP hardware interface
    universal prewired, for use with all types of control unit, for the control of any automation, lighting or irrigation system or other electric circuits.
    . Maximum Flexibility up to 1024 transmitters can be memorised.

  • Convenient and practical: the inclusion of a transmitter in the OXITFM, OX2T/OX2TFM and OX4T receivers allows radio codes to be accessed by means of the O-Box multifunction interface even when in inaccessible positions.
    OXITFM, OX2T/OX2TFM and OX4T receivers can be used as signal repeaters to increase the operating distance between transmitters and other One series receivers.


Secure use, thanks to the 3 password-protected levels.

The O-Box and dedicated software applications for PC and PDA allow:

  • quick, user-friendly programming of receivers and transmitters;
  • management and printout of code list;
  • creation of individual installation databases (useful
    in multi-user systems).
    Management of multi-user system: through the unique, personal code: the recognition receivers can receive and memorise up to 255 codes.
    Memorisation: a particular receiver output can be associated to each transmitter key (e.g. key 3 TX= output 1 RX).

RECEPTION FREQUENCY (MHZ)TRANSMISSION FREQUENCY (MHZ)INPUT IMPENDANCE (OHM)SENSITIVITYENCODINGNUMBER OF CHANNELS
OX2TFM868,46868,46-.0.8 u V FOR SIGNALS WITH SUCCESSFUL OUTCOMES
0-CODE2
RELAY CONTACTPOWER SUPPLYABSORPTIONINGRESS PROTECTION CLASSDIMENSIONS (MM)WEIGHT (G)
MAX 0.5 A 50 V (NA)FROM 12 TO 28 Vdc/Vac100 mA (MAX) WITH RELAYS ACTIVEIP 3058X86X22H55

Nice Pre-wired receiver 868.42MHz, 2 Channels, with built-in Transmitter

  • Brand: Nice
  • Product Code: OX2TFM
  • Availability: In Stock
  • £248.58
  • £142.88

  • Ex Tax: £119.06
