Oltre 1824 For swing gates with leaves up to 1.8 m and 100 kg

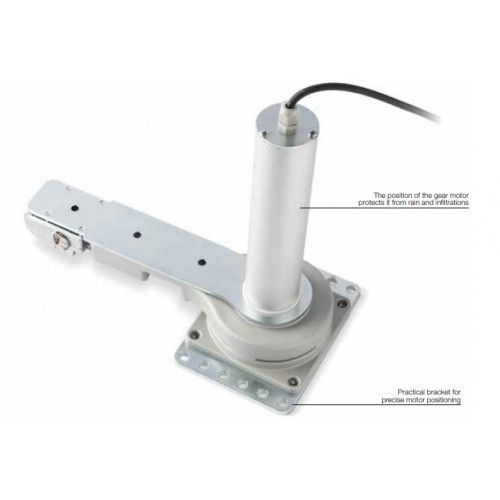

Concealed motor for swing gates. 24 Vdc irreversible electromechanical gear motor.
Minimum visual impact: the motor is small enough to be easily installed inside the profiles of the gate leaf or in very slim posts (with a minimum diameter of 55 mm).
Easy to install: the bottom-up installation simplifies fixing of the motor inside the post.
Resistant: die-cast aluminium structure, IP67, resists the most severe weather conditions
Quick and reliable: complete opening (90°) of the leaf in about 10 seconds. Oltre has been tested for use at 60 cycles/hour, making it suitable for all contexts with intensive use
Safe: easy-to-use external manual release: the gate can always be opened manually, without having to take it apart.
Dedicated Moonclever MC824L control unit: • easy to programme; • automatic memorization of limit switches on opening and closing with self-learning function; • automatic fault diagnostics; • programming of pause time; • pedestrian pass door; • deceleration on opening and closing; • obstacle detection with dual technology; • operation in event of power failure by means of optional rechargeable batteries (PS324); • provision for connection of resistive sensitive edges.

OLTRE 1824

ELECTTRICAL DATA

POWER SUPPLY (Vdc)	ABSORPTION (A)	POWER (W)
24	7	25

PERFORMANCE DATA

SPEED (RPM)	TORQUE (NM)	WORK CYCLE (CYCLES/HOUR)**
1,5	150	60

DIMENSIONAL AND GENERAL DATA

PROTECTION LEVEL (IP)	WORKING TEMP (°C MIN/MAX)	DIMENSIONS (MM)	WEIGHT (KG)
67	-20 ÷ +50	305X145X346H	5,5

Nice Oltre 1824

Qty

£382.75
