Control unit for 24V motor (suitable for Sumo), with provision for Solemyo and Opera.
Compatible with the solar power kit Sole- myo.
Compatible with the Opera system; thanks to the multifunction O-View display (mountable in the box), this enables the system to be personalised, modifying the opening and closing positions and decelerations and diversifying the parameters such as force, speed and obstacle sensitivity for each motor.
Practical and safe: new box with 3 built-in buttons in the cover to control the automation. Ample internal space for wiring and accessories. Protective inner cover to guarantee maximum installation safety and prevent accidental damage to the electronics.
User-friendly: the new programming procedure with button and DIP switch and practical removable connec- tors further simplifies installation.
Compatible with the IBT4N interface: The dedicated slot enables connection of Bus T4 compatible accesso- ries and programming interfaces.
Complete: the inputs and outputs programmable with O-View, new relay outputs and compatibility with all the sensitive edges most popular on the market (resistive and optical) make it ideal for all needs.
Safe and reliable: thanks to obstacle detection throughout door/gate travel, with provision for connec- tion of latest generation resistive sensitive edges.
Savings, respect for the environment, and auton- omy: when connected to the buffer battery or Solemyo kit, consumption in standby is reduced to just 0.1 W.
Intelligent: automatic fault diagnostics and signals via flashing light and confirmation leds.
No black out: continues to work even during power failures using optional (PS124) batteries that fit inside the control unit
DPRO924
| POWER SUPPLY (Vac 50/60 Hz) | BATTERY POWER (Vdc) | MAXIMUM MOTOR POWER (VA;A) | MAXIMUM ACCESSORIES POWER 24V (A) | MAXIMUM FLASHING LIGHT POWER (V; W) | PAUSE TIME "TP" (S) |
| 230 ± 10% | 21÷ 28 | 360 (W); 15 | 0,2 | 12; 21 | 1 : 250 |
| WORKING TIME "TS" (S) / PAUSE TIME "TP" (S) | COURTESY LIGHT TIME TCOR (S) | PRE-FLASHING TIME TRE (S) | ANTI-CRUSHING DEVICE (SENSITIVITY) | CASE DIMENSIONS (MM) |
| - / 1 ÷ 1023 | 0 : 250 | 0 : 60 | MIN ÷ MAX | 210X125X310h |

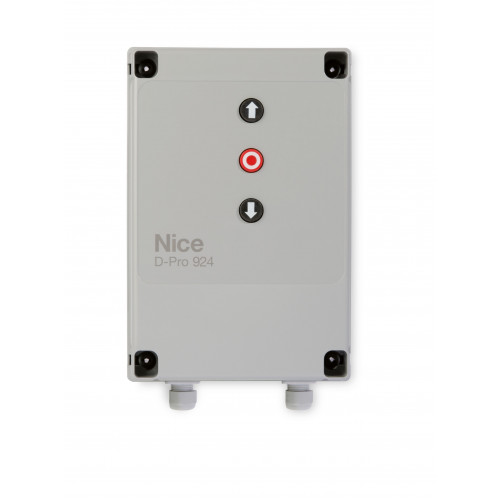

Nice D-Pro 924 Control Unit
- Brand: Nice
- Product Code: DPRO924
- Availability: In Stock
- £630.97
-
£362.65
- Ex Tax: £302.21
