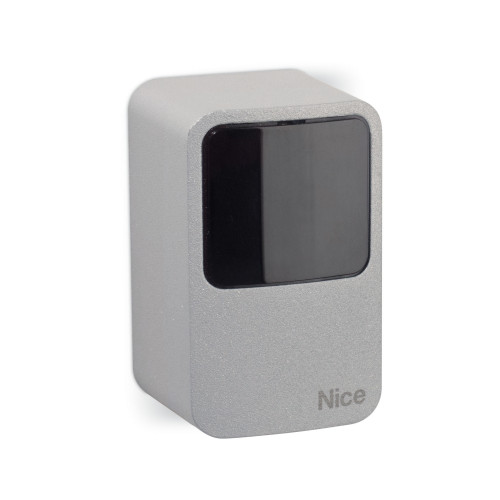

Era Photocell M, pair of outdoor photocells, burglar-resistant metal body
- Safe: D type device according to specification E-124 which allows to pick-up obstacles on the optical axis between transmitter (TX) and receiver (RX). Using the fototest function it is possible to achieve class 2 safety fault according to specification E- 94-1. Antiglare circuit which eliminates possible sunlight interference.
- Fast easy installation: the wireless technology (EPMOW) eliminates the need to wire the photocells to the control unit and provide routing and cable ducts. The devices interface with the control unit through an ultra-compact dedicated module (IBW) which can be housed directly in the motor or the control unit if separate. 4p to devices with nice BlueBUS technology can be connected to the same IBW interface. thanks to the reflective technology (EP,OR), just the main photocell needs to be wired and not the reflective mirror, saving time.
- Practical: 10° angle of reception. The positionable versions allow for the compensation of centering gaps up to 30°.
- Resistant and vandal-proof: ABS body resistant to weather conditions, available also in burglar-resistant version with metal shell.
| Estimated Range | Power Supply | Absorption (mA) | Photocell Adjustability | Protection level (IP) | Operating Temperature (°C Min/Max) | Relay Range | Dimensions (mm) | Weight (g) | |
| EPMAO | 15 (30 with jumper + "10" cut) | without jumper 24 Vac/ Vdc limits: 18-35 Vdc, 15-28 Vac with 12 Vac/Vdc jumper limits: 10-18 Vdc, 9-15Vac | 25 RX, 30TX | 30° Approx. on the all axes. | 44 | -20 ÷ +50 | max 500 mA and 48V | 50x38x80h | 530 |
Nice Era Photocell Medium - Burglar Resistant Metal Body
- Brand: Nice
- Product Code: EPMAO
- Availability: In Stock
- £231.11
-
£132.83
- Ex Tax: £110.69
