Nice motor for sliding gates up to 400 kg with leaf length up to 6 m.
Motor with built-in control unit and absolute encoder. Innovative ultra-compact design: the vertical configuration of the motor makes it easy to install even in narrow openings.
User-friendly: thanks to the BlueBUS system, allowing the control unit to be connected to up to 7 pairs of photocells and control, security and signalling devices with just two wires.

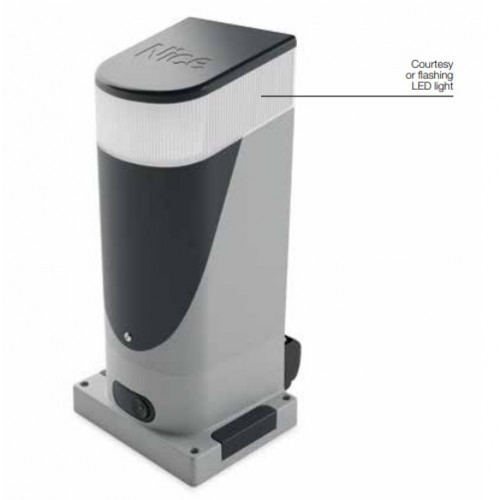

Built-in LED light: programmable as either a flashing or courtesy light, it warns of gate movement during opening and closing.
Master/slave selection: for automatic synchronisation even of 2 motors, allowing automation of sliding gates with two opposing leaves.
Intelligent: thanks to obstacle detection and automatic working time programming.
Self-diagnostics with flashing light signalling. Safe: acceleration and deceleration can be adjusted at the beginning and at the end of each opening and closing manoeuvre.
Built-in absolute limit stop: • simple and precise regulation thanks to the rapid learning in a single movement with the motor released; • no bracket or accessory to be installed on the ratchet; • particularly suitable in snow areas.
Practical: control unit and optional PS124 buffer batteries can be connected by means of practical guided - connector.

SLH400

ELECTRICAL DATA

POWER SUPPLY (Vac 50/60 Hz)	ABSORPTION (A)	POWER (W)
230	1,1	250

PERFORMANCE DATA

SPEED (m/s)	FORCE (Nm)	WORK CYCLE (CYCLES/HOUR)
0,34	400	35

DIMENSIONAL AND GENERAL DATA

PROTECTION LEVEL (IP)	WORKING TEMP. (°C MIN/MAX)	DIMENSIONS (MM)	WEIGHT (KG)
44	-20 ÷ +50	191x198x405h	6,5

Nice Slight SLH400 Sliding Gate Motor
