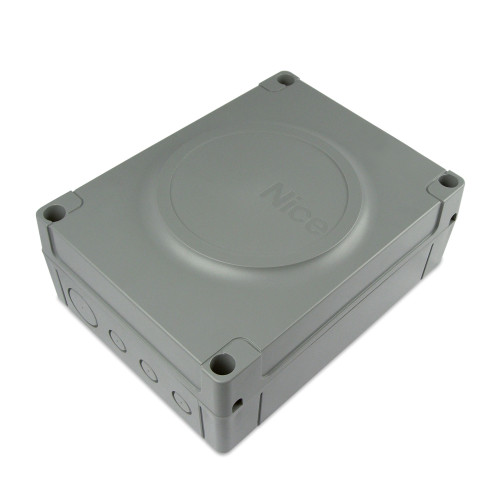

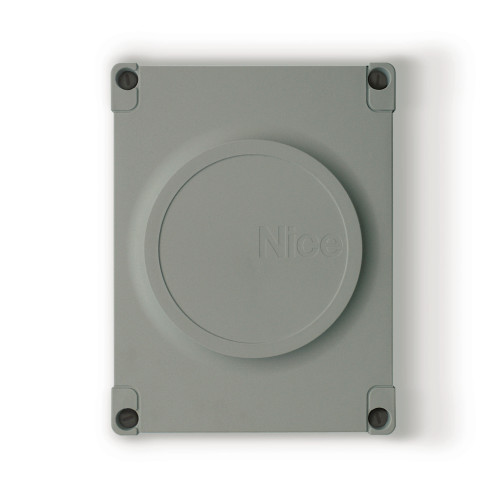

- Moonclever Control units for motors for 24 Vdc swing gates, with magnetic encoder
- With Nice BlueBUS technology, compatible with the Solemyo solar power kit (MC824H, MC824L) and Opera system for automation management, programming and diagnostics, including remotely.
- Compatible with the Opera system whose multifunction O-View display (mountable in the box) enables the system to be personalised, modifying the opening and closing positions, staggered closing of the leafs and decelerations, diversifying the parameters such as force, speed and obstacle sensitivity for each motor.
- Microprocessor logic: Moonclever control units combine the advantages of the Opera system with the advanced functions of the Nice systems (gradual start and deceleration, automatic memorising of both limit switch positions and pedestrian pass door function).
- Safe and reliable: thanks to obstacle detection with dual technology and monitoring of motor absorption and speed via the encoder, throughout door/gate travel, with provision for connection of latest generation resistive sensitive edges.
- Smart: on start-up, indicator to confirm correct power supply and efficient operation of the control unit; automatic fault diagnostics and signalling via the flashing light and confirmation LEDs.
- Savings, respect for the environment, and autonomy: when connected to the buffer battery or Solemyo kit (MC824H, MC824L), consumption on standby is reduced to just 0.1 W.
- Installation couldn’t be simpler: thanks to the system BlueBUS, enabling connection of the control unit, motors and accessories by means of just two wires.
- No black out: operation in the event of a power failure by means of optional batteries (PS324) with compartment in control unit.
- Radio receiver: designed to take SM plug-in receivers.
| POWER SUPPLY (Vac 50/60 Hz) | BATTERY POWER (Vdc) | MAXIMUM MOTOR POWER (VA;A) | MAXIMUM ACCESSORIES POWER 24V (A) | MAXIMUM FLASHING LIGHT POWER (V;W) | MAXIMUM GATE OPEN INDICATOR POWER CA (V;W) | MAXIMUM ELECTRIC LOCK POWER (Vac; VA) | WORKING TIME "TL" (s) |
| 230 ± 10% | 21÷ 28 | 360 (W); 15 | 0,2 | 12;21 | 12;2 | 12;15 | - |
| PAUSE TIME "TP" (s) | DELAY 1ST MOTOR IN OPENING TRA (s) | DELAY 2ND MOTOR IN CLOSING TRC (s) | COURTESY LIGHT TIME TCOR (s) | PRE-FLASHING TIME TPRE (s) | FORCE ADJUSTMENT (%) | ANTI-CRUSHING DEVICE (SENSITIVITY) | CASE DIMENSIONS (MM) |
| 1 ÷ 250 | PROGRAMMABLE | PROGRAMMABLE | 0: 250 | 0: 10 | - | MIN ÷ MAX | 230X125X300H |
Nice MOONCLEVER
- Brand: Nice
- Product Code: MC824H
- Availability: In Stock
- £517.90
-
£297.66
- Ex Tax: £248.05
